JEE Main 2025 (23 Jan Shift 1)
Question

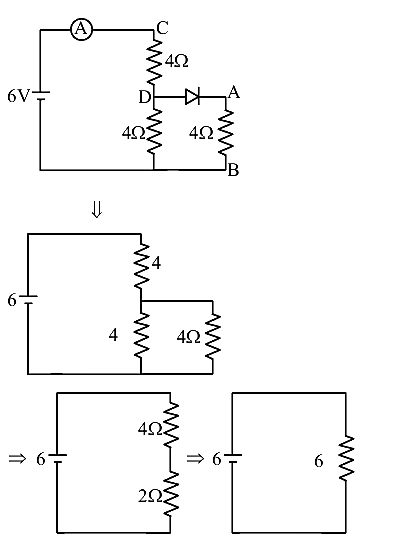

Refer to the circuit diagram given in the figure. which of the following observations are correct?
A. Total resistance of circuit is
B. Current in Ammeter is 1 A
C. Potential across is 4 Volts.
D. Potential across CD is 4 Volts
E. Total resistance of the circuit is .
Choose the correct answer from the options given below:
Choose an option
Show full solutionCorrect option: A
Correct answer
AA, B and D Only
Step-by-step explanation
Current through ammeter
$\begin{aligned} & \mathrm{V}_{\mathrm{AB}}=0.5 \times 4=2 \mathrm{volt} \\ & \mathrm{~V}_{\mathrm{CD}}=1 \times 4=4 \mathrm{volt} \end{aligned}$ A, B & D are correct
