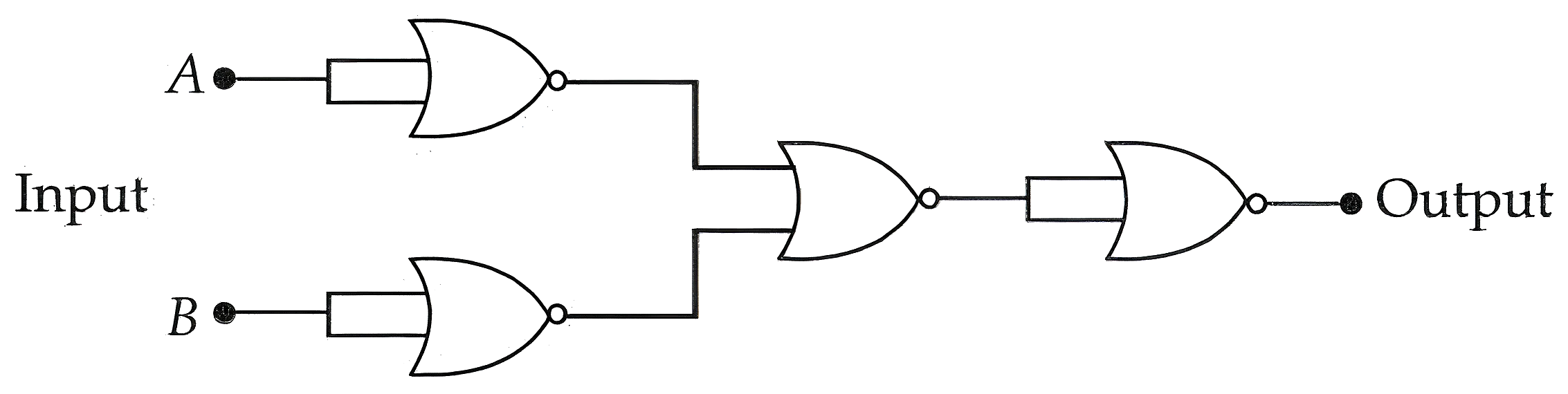

Let the inputs be A and B. The circuit is composed of NOR gates.
A NOR gate with its inputs tied together acts as a NOT gate.
The output of the first NOR gate (input A) is $Y_1=\overline{A+A}=\bar{A}$.
The output of the second NOR gate (input B) is $Y_2=\overline{B+B}=\bar{B}$.
These outputs are fed into a third NOR gate. Its output is $Y_3=\overline{Y_1+Y_2}=\overline{\bar{A}+\bar{B}}$.
Using De Morgan's theorem, $Y_3=(\overline{\bar{A}})\cdot (\overline{\bar{B}})=A\cdot B$.
This output $Y_3$ is the input to the fourth NOR gate, which is configured as a NOT gate.
The final output is $Y_{out}=\overline{Y_3}=\overline{A\cdot B}$.
The expression $\overline{A\cdot B}$ represents a NAND gate.
