JEE Main 2021 (01 Sep Shift 2)

Question

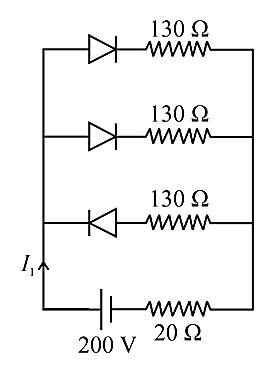

In the given figure, each diode has a forward bias resistance of 30 Ω and infinite resistance in reverse bias. The current I1 will be :

Choose an option

Show full solutionCorrect option: A
Correct answer
A2.0 A

Step-by-step explanation

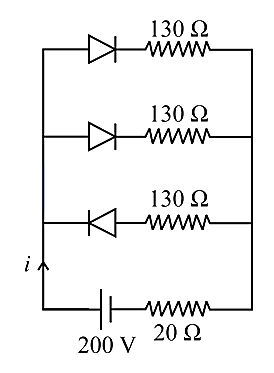

We know that in reverse bias ideal diode does not pass current it only works in forward bias so, the current in the third branch is zero, it means the net resistance of the upper two branch is, 1Req=1160+1160⇒Req=80 Ω

⇒R'eq=80+20=100 Ω

⇒i=200100=2 A
