JEE Main 2022 — Semiconductors Question with Solution
JEE Main 2022 (25 Jun Shift 2)
Question

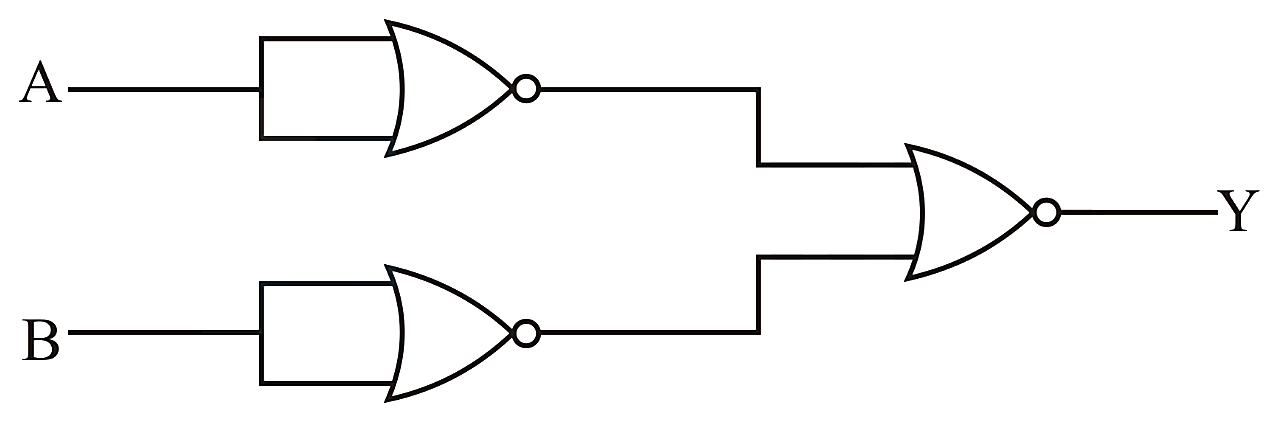

Identify the logic operation performed by the given circuit
Choose an option
Show full solutionCorrect option: A
Correct answer
AAND gate
Step-by-step explanation

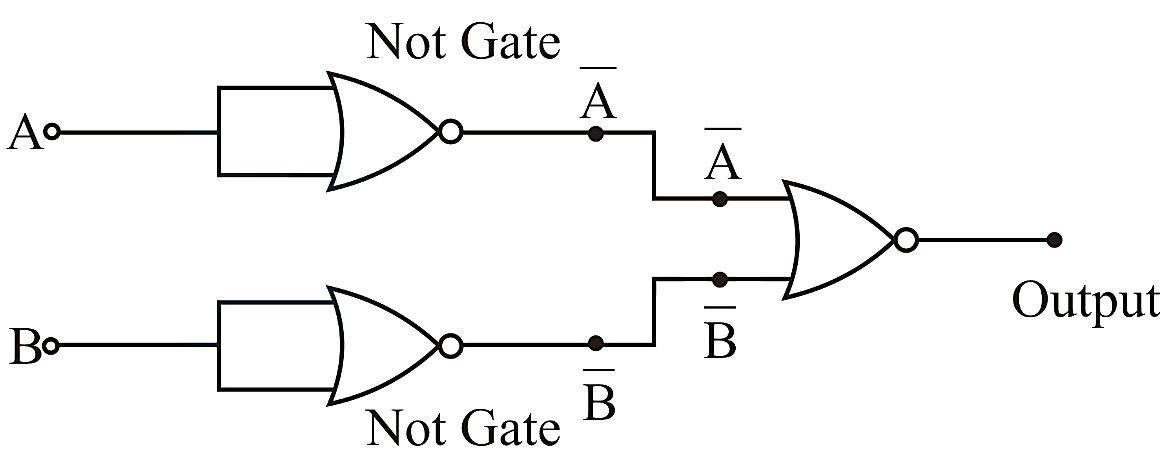

According to the circuit,
Output
Thus, the given circuit is a AND gate.
