JEE Main 2020 (06 Sep Shift 2)

Question

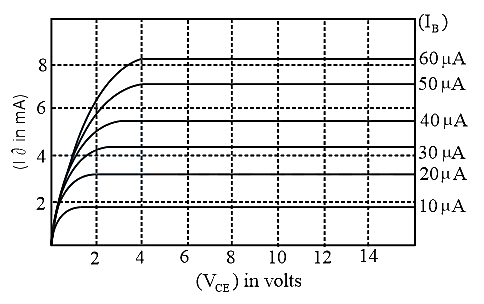

The output characteristics of a transistor is shown in the figure. When VCE is 10V and IC=4.0 mA, then value of βac is



Enter your answer

Show full solutionCorrect answer: 150
Correct answer
150

Step-by-step explanation

From the formula of current gain, β=ΔiCΔiBVCE=10

ΔiC=4.5-3 mA

⇒ΔiC=1.5 mA

⇒ΔiC=1.5×10-3 A

ΔiB=30-20 μA

⇒ΔiB=10 μA

⇒ΔiB=10×10-6 A

⇒ΔiB=10-5 A

⇒β=ΔiCΔiBVCE=10=1.5×10-310-5

⇒β=1.5×10-3×105

⇒β=150
