JEE Main 2023 (08 Apr Shift 2)

Question

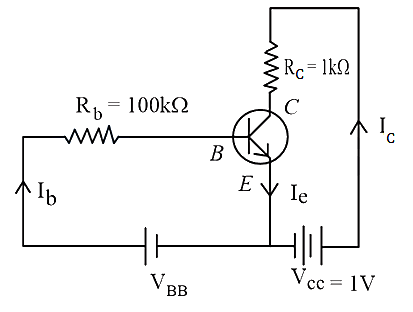

For a given transistor amplifier circuit in CE configuration VCC=1 V,RC=1 kΩ,Rb=100 kΩ and β=100. Value of base current Ibis

Choose an option

Show full solutionCorrect option: D
Correct answer
DIb=10 μA

Step-by-step explanation

Considering the transistor in saturation mode, VCE=0

Using Kirchhoff's voltage rule,

-ICRC+VCC=0⇒IC=VCCRC⇒IC=1 V103 Ω=10-3 A

So,

β=ICIb=10-3 AIb⇒Ib=10-3102=10-5 A=10 μA
