JEE Main 2016 (10 Apr Online)

Question

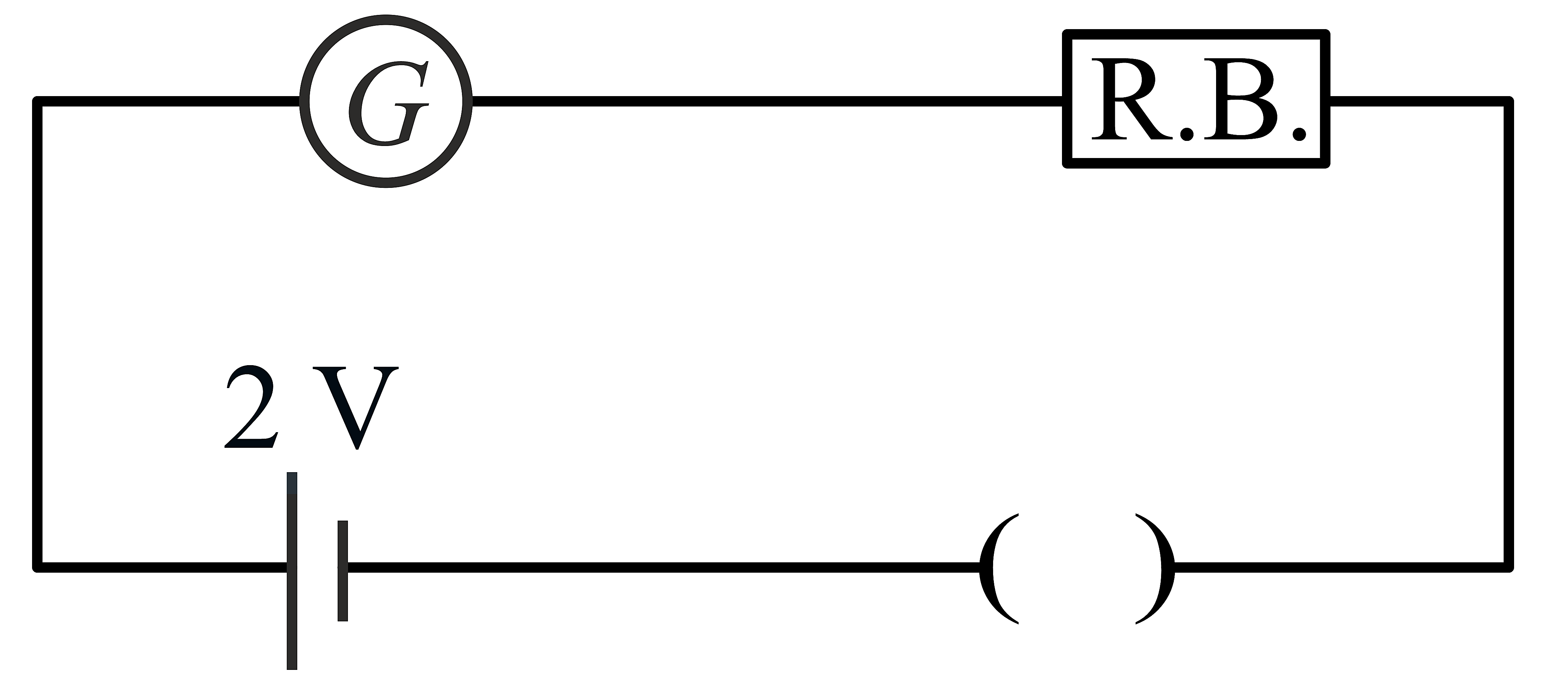

A galvanometer has a 50 division scale. Battery has no internal resistance. It is found that there is deflection of 40 divisions when R.B.=2400 Ω. Deflection becomes 20 divisions when resistance taken from resistance box is 4900 Ω. Then we can conclude :



Note: This question is awarded as the bonus. Now the question is corrected.

Choose an option

Show full solutionCorrect option: A
Correct answer
ACurrent sensitivity of galvanometer is 20 μA/division

Step-by-step explanation

Current in the circuit,

I=V2400+RG and I2=V4900+RG

⇒RG=100Ω

I=22500=8×10-4A

Current Sensitivity =8×10-440

20μA per division
