JEE Main 2026 (21 January Shift 1)
Question

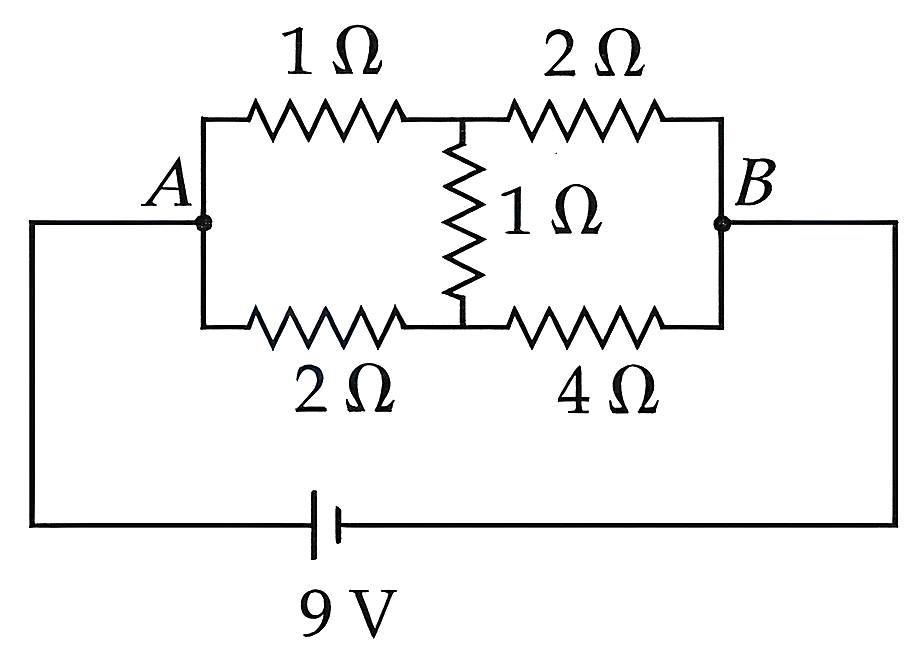

The heat generated in 1 minute between points and in the given circuit, when a battery of 9 V with internal resistance of is connected across these points is J.
Enter your answer
Show full solutionCorrect answer: 1080
Correct answer
1080
Step-by-step explanation
Wheatstone bridge with P = 1Ω, Q = 2Ω, R = 2Ω, S = 4Ω
→ Bridge is balanced, no current through middle 1Ω.
: Upper (3Ω) and Lower (6Ω) in parallel =
Total resistance = 1 + 2 = 3Ω
Current A
Power between A and B: W
Heat in 1 min = J
→ Bridge is balanced, no current through middle 1Ω.
: Upper (3Ω) and Lower (6Ω) in parallel =
Total resistance = 1 + 2 = 3Ω
Current A
Power between A and B: W
Heat in 1 min = J
