JEE Main 2019 (08 Apr Shift 2)

Question

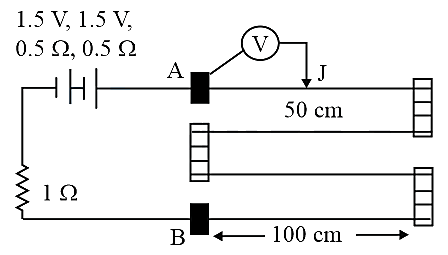

In the circuit shown, a four-wire potentiometer is made of a 400 cm long wire, which extends between A and B . The resistance per unit length of the potentiometer wire is r=0.01 Ω/cm. If an ideal voltmeter is connected as shown with jockey J  at 50 cm from end A , the expected reading of the voltmeter will be:

Choose an option

Show full solutionCorrect option: B
Correct answer
B0.25 V

Step-by-step explanation

From the given question we take,

Current in the wire, I=VR=1.5+1.50.5+0.5+1+0.01×400=0.5 A

Resistance of 50 cm long wire, =50×0.01=0.5 Ω

Reading =  Current × Resistance
=0.5×0.5
=0.25 V
