JEE Main 2022 (26 Jun Shift 2)

Question

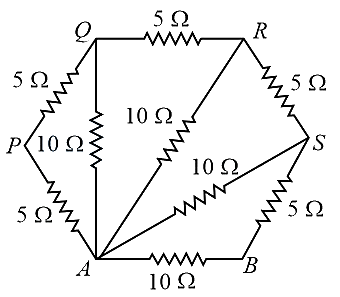

Find the equivalent resistance between point A and B

Choose an option

Show full solutionCorrect option: C
Correct answer
C5 Ω

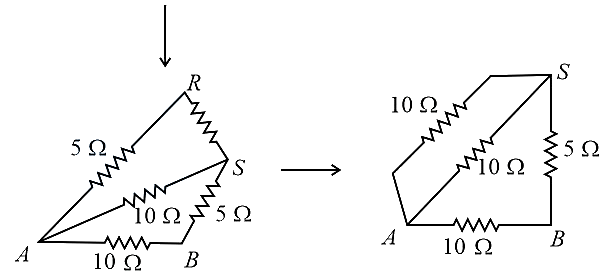

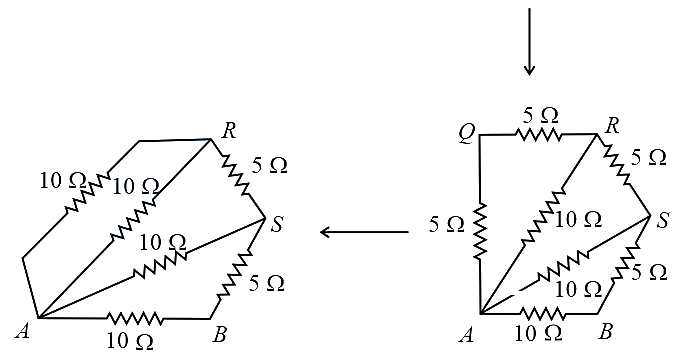

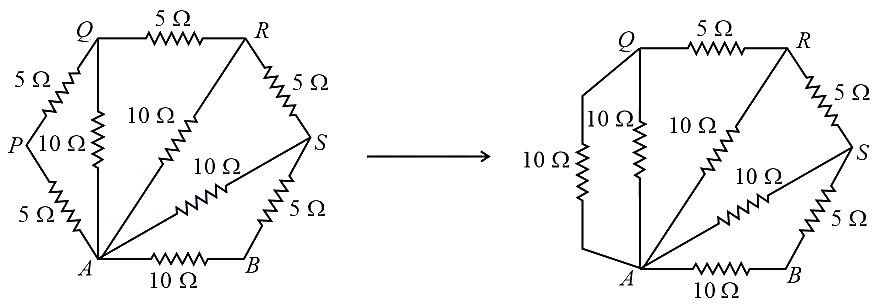

Step-by-step explanation

Therefore, RAB=RAS+5×10RAS+5+10=5+5×105+5+10=5 Ω
