JEE Main 2023 (24 Jan Shift 2)

Question

A cell of emf 90 V is connected across series combination of two resistors each of 100 Ω resistance. A voltmeter of resistance 400 Ω is used to measure the potential difference across each resistor. The reading of the voltmeter will be:

Choose an option

Show full solutionCorrect option: A
Correct answer
A40 V

Step-by-step explanation

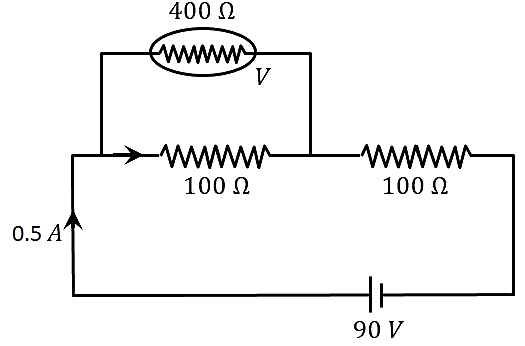

As we know, voltmeter is connected in parallel to the element being measured.

The equivalent resistance of the above circuit is Req=400×100400+100+100=80+100=180 Ω

Current through the circuit is i=90180=12 A

Reading of the voltmeter is VR=i400×100400+100=12×80=40 V
