JEE Main 2020PhysicsRay OpticsHardNumerical

JEE Main 2020Ray Optics Question with Solution

JEE Main 2020 (03 Sep Shift 1)

Question

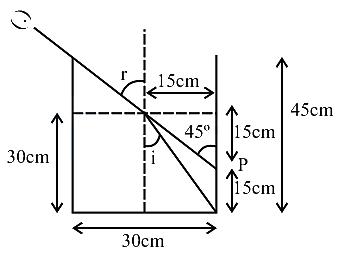

An observer can see through a small hole on the side of a jar (radius 15 cm ) at a point at height of 15 cm from the bottom (see figure). The hole is at a height of 45 cm. When the jar is filled with a liquid up to a height of 30 cm the same observer can see the edge at the bottom of the jar. If the refractive index of the liquid isN100, where N is an integer, the value of N is

Enter your answer

Show full solutionCorrect answer: 158
Correct answer
158

Step-by-step explanation

From Shell's Law

μ×sini=1×sinr

μ×15152+302=1×sin45°

μ=52=158×10-2
