JEE Main 2024PhysicsRay OpticsEasyMCQ

JEE Main 2024 — Ray Optics Question with Solution

JEE Main 2024 (29 Jan Shift 2)

Question

If the distance between object and its two times magnified virtual image produced by a curved mirror is 15 cm, the focal length of the mirror must be :

Choose an option

Show full solutionCorrect option: C
Correct answer
C-10 cm

Step-by-step explanation

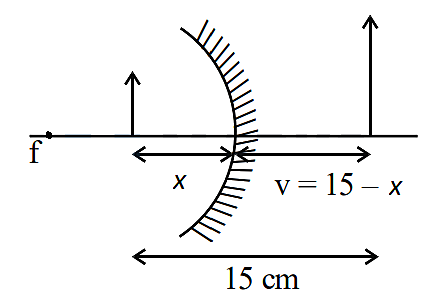

Let object be at a distance x cm from the pole. Then, distance of image from the pole will be =15-x.

Given:

Magnification, m=2=-vu

⇒2=-(15-x)-x

⇒2x=15-x

⇒3x=15⇒x=5 cm

Now,

Distance of the image from the pole =15-x=15-5=10 cm

Therefore, v=10 cm

From mirror formula:

1f=1v+1u

=110+1(-5)=1-210=-110

⇒f=-10 cm
