JEE Main 2025 — Ray Optics Question with Solution
JEE Main 2025 (29 Jan Shift 2)
Question

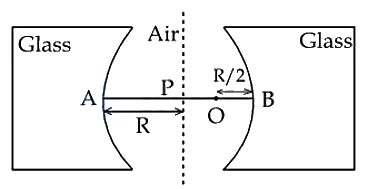

Two concave refracting surfaces of equal radii of curvature and refractive index 1.5 face each other in air as shown in figure. A point object O is placed midway, between P and B . The separation between the images of , formed by each refracting surface is :
Choose an option
Show full solutionCorrect option: D
Correct answer
D0.114 R
Step-by-step explanation
For B
$\begin{aligned}
& \frac{\mu_2}{\mathrm{~V}}-\frac{\mu_1}{\mathrm{u}}=\frac{\mu_2-\mu_1}{\mathrm{R}} \\
& \frac{1.5}{\mathrm{~V}}+\frac{1}{\frac{R}{2}}=\frac{0.5}{-\mathrm{R}} \\
& \frac{1.5}{\mathrm{~V}}=-\frac{1}{2 \mathrm{R}}-\frac{2}{\mathrm{R}} \\
& \frac{1.5}{\mathrm{~V}}=\frac{-5}{2 \mathrm{R}} \Rightarrow V_B=-0.6 \mathrm{R}
\end{aligned}$
For A
$\begin{aligned}
& \frac{1.5}{V}+\frac{2}{3 R}=\frac{0.5}{-R} \\
& \frac{1.5}{V}=-\frac{1}{2 R}-\frac{2}{3 R} \\
& \frac{1.5}{V}=-\frac{7}{6 R} \\
& V_A=-\frac{9}{7} R
\end{aligned}$
Distance between images
