JEE Main 2016 (10 Apr Online)

Question

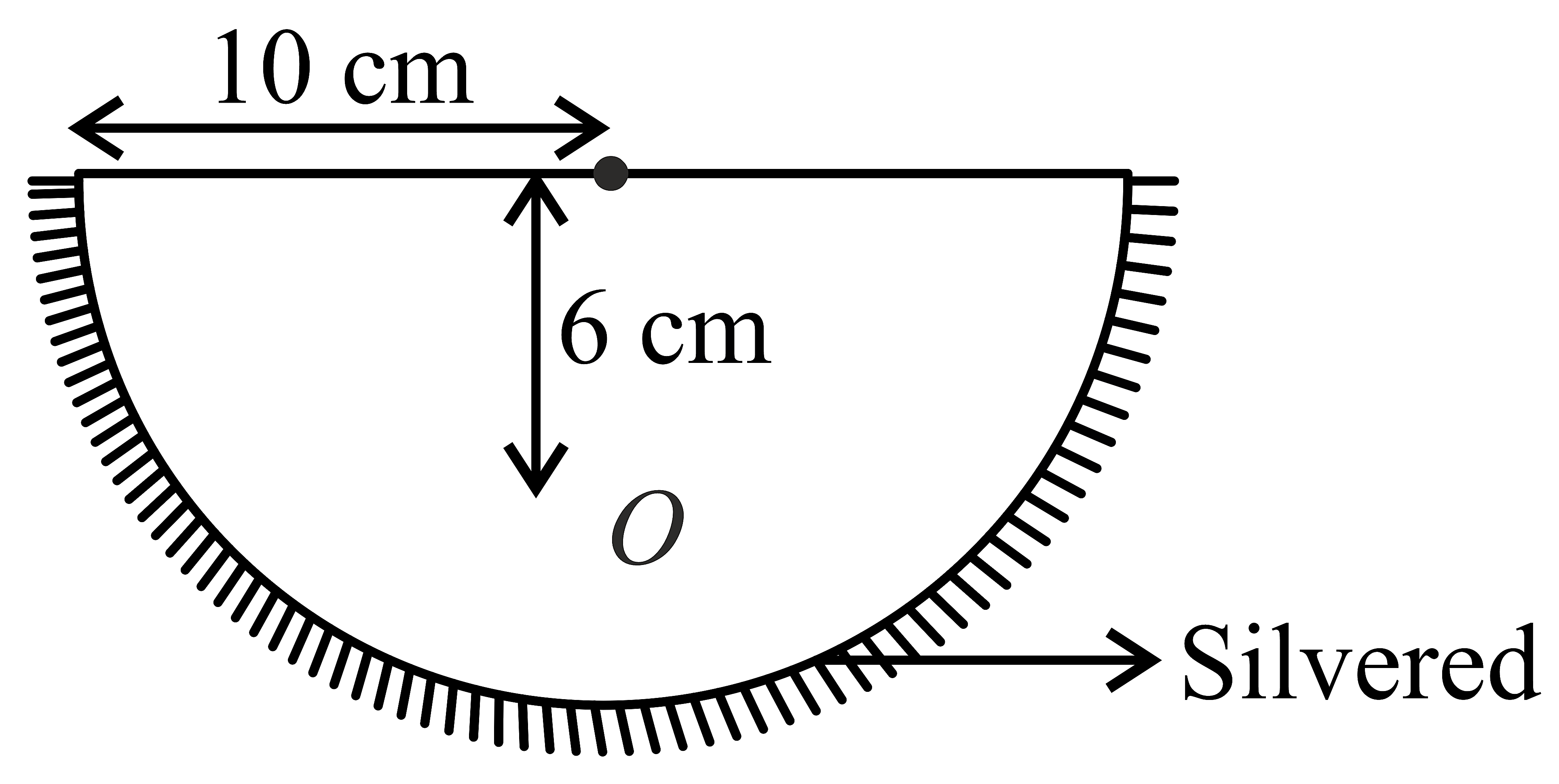

A hemispherical glass body of radius 10 cm and refractive index 1.5 is silvered on its curved surface. A small air bubble is 6 cm below the flat surface inside it along the axis. The position of the image of the air bubble made by the mirror is seen :

Choose an option

Show full solutionCorrect option: B
Correct answer
B20cm below flat surface

Step-by-step explanation

Mirror image

1v+1u=1f⇒1v+1-4=1-5

1v=120
v=20

So, it is 30 cm below flat surface.

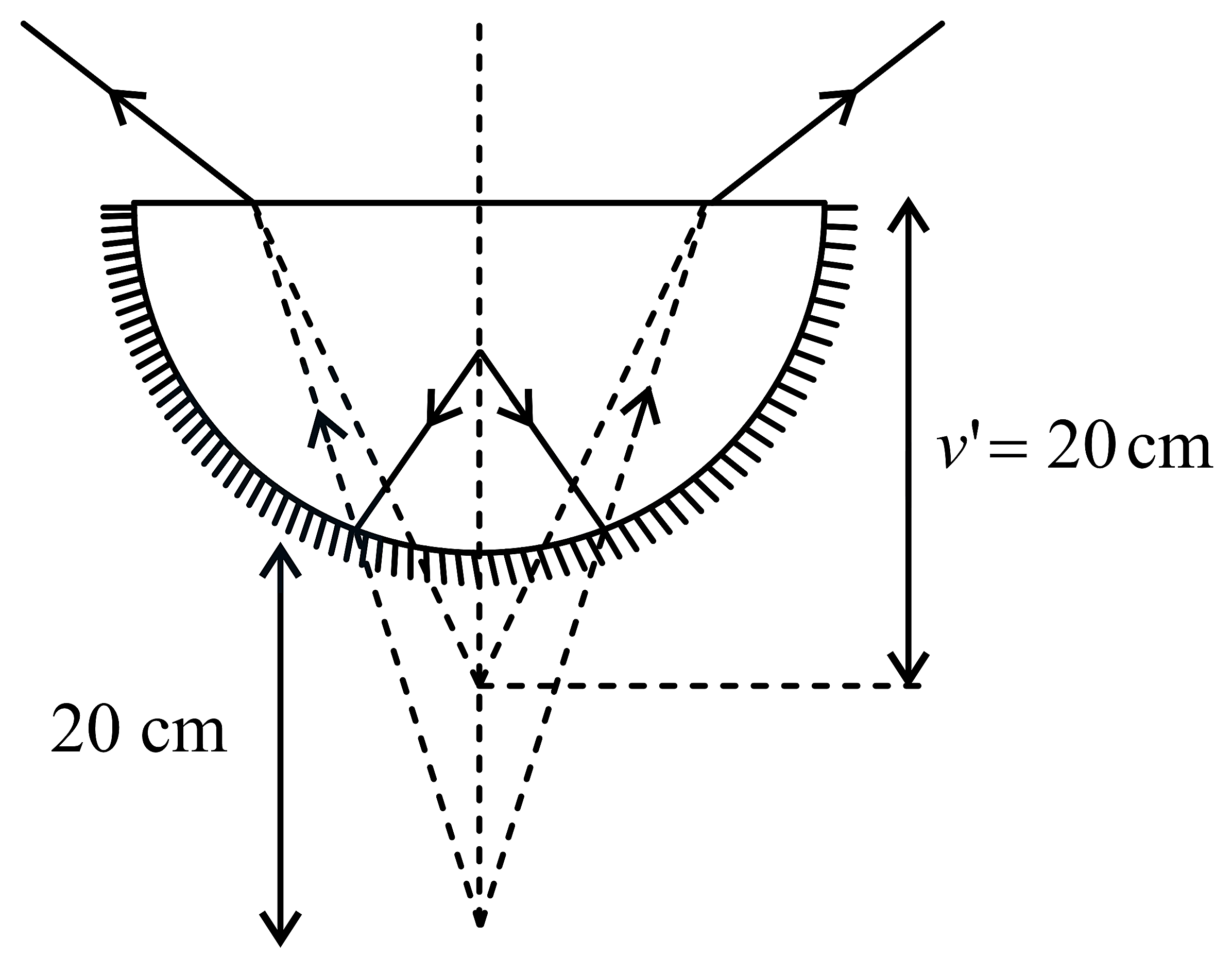

Now, After refraction

v'=30μ=301.5=20 cm
