JEE Main 2023 (13 Apr Shift 1)

Question

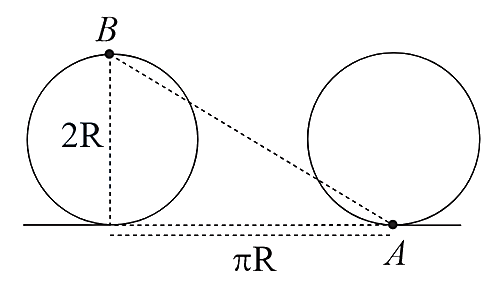

A disc is rolling without slipping on a surface. The radius of the disc is R. At t=0, the top most point on the disc is A as shown in figure. When the disc completes half of its rotation, the displacement of point A from its initial position is

Choose an option

Show full solutionCorrect option: B
Correct answer
BRπ2+4

Step-by-step explanation

The displacement is the hypotenuse of the diameter and the distance travelled for half the rotation πR.

By using Pythagoras theorem,

Displacement of A=(2R)2+(πR)2

=Rπ2+4
