JEE Main 2019 (10 Apr Shift 2)

Question

Two blocks  A and  B of masses mA=1 kg and mB=3 kg are kept on the table as shown in figure. The coefficients of friction between A and B is 0.2 and between  B and the surface of the table is also 0.2. The maximum force F that can be applied on B horizontally, so that the block  A does not slide over the block B is : [Take  g=10 m/s2 ]

Choose an option

Show full solutionCorrect option: A
Correct answer
A16 N

Step-by-step explanation

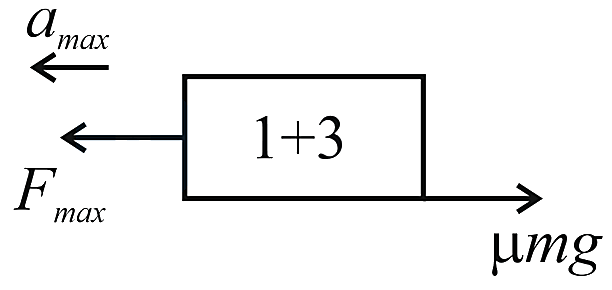

Maximum possible acceleration of 1 kg block a=µmgm=µg=2 m/s2

For 1 g block not to slide the maximum acceleration of both blocks should be

Fmax-µmg=mamax
Fmax-0.2×4×10=4×2
Fmax- 8=8
Fmax=16 N
