JEE Main 2016 (10 Apr Online)

Question

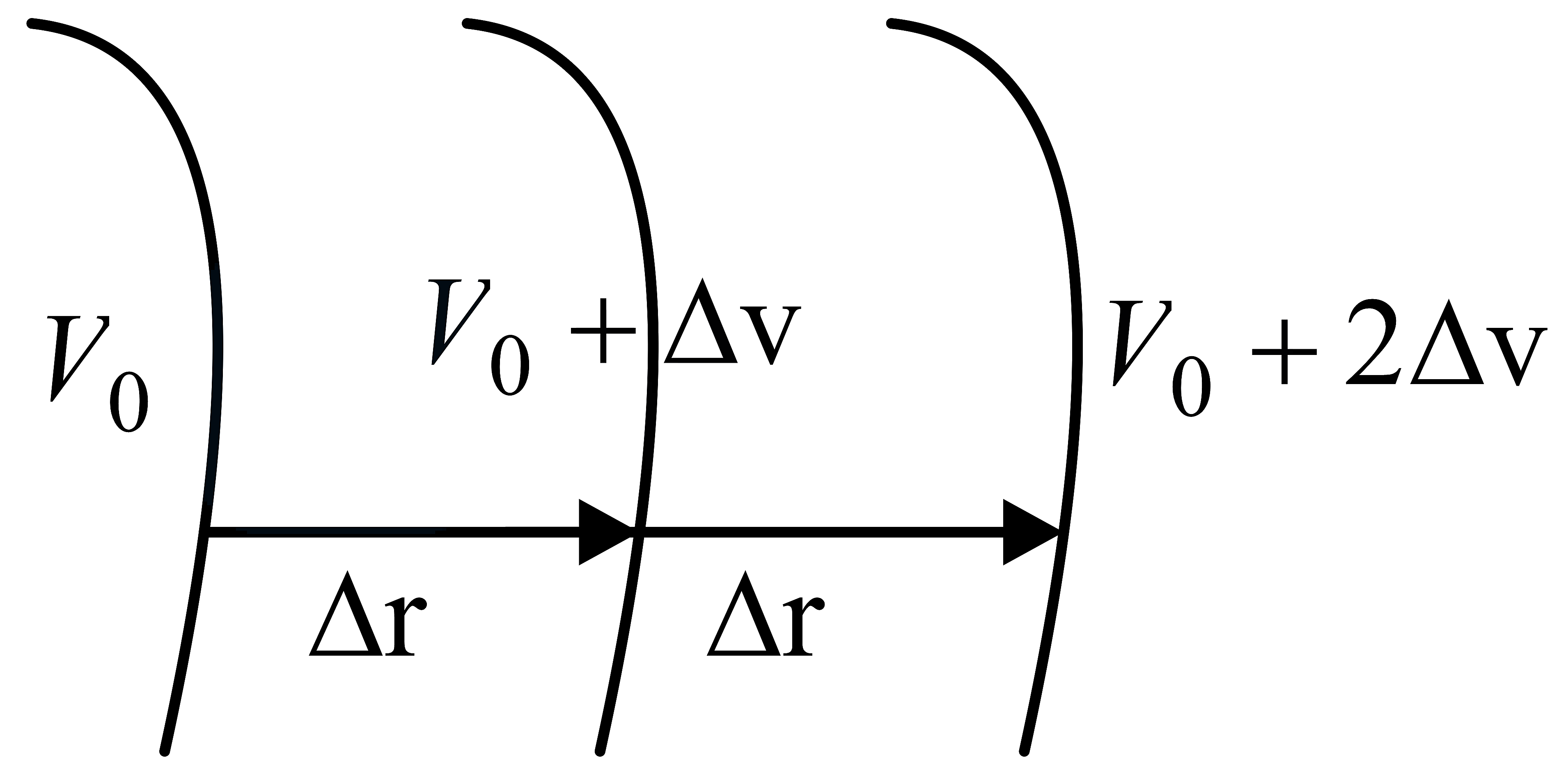

Within a spherical charge distribution of charge density ρr,  N equipotential surfaces of potential V0, V0+∆V, V0+2∆V,…V0+N∆V ∆V>0, are drawn and have increasing radii r0, r1, r2,…rN, respectively. If the difference in the radii of the surfaces is constant for all values of V0 and ∆V then :

Choose an option

Show full solutionCorrect option: C
Correct answer
C ρ( r ) ∝  1 r

Step-by-step explanation

E=− ΔV Δr

∴    △v and △r are constant

E = constant

E=Kqr2=c

⇒   q ∝r2

∴   q=∫0rρ4πr2dr

⇒   ρ∝1r
