JEE Main 2017 (02 Apr)

Question

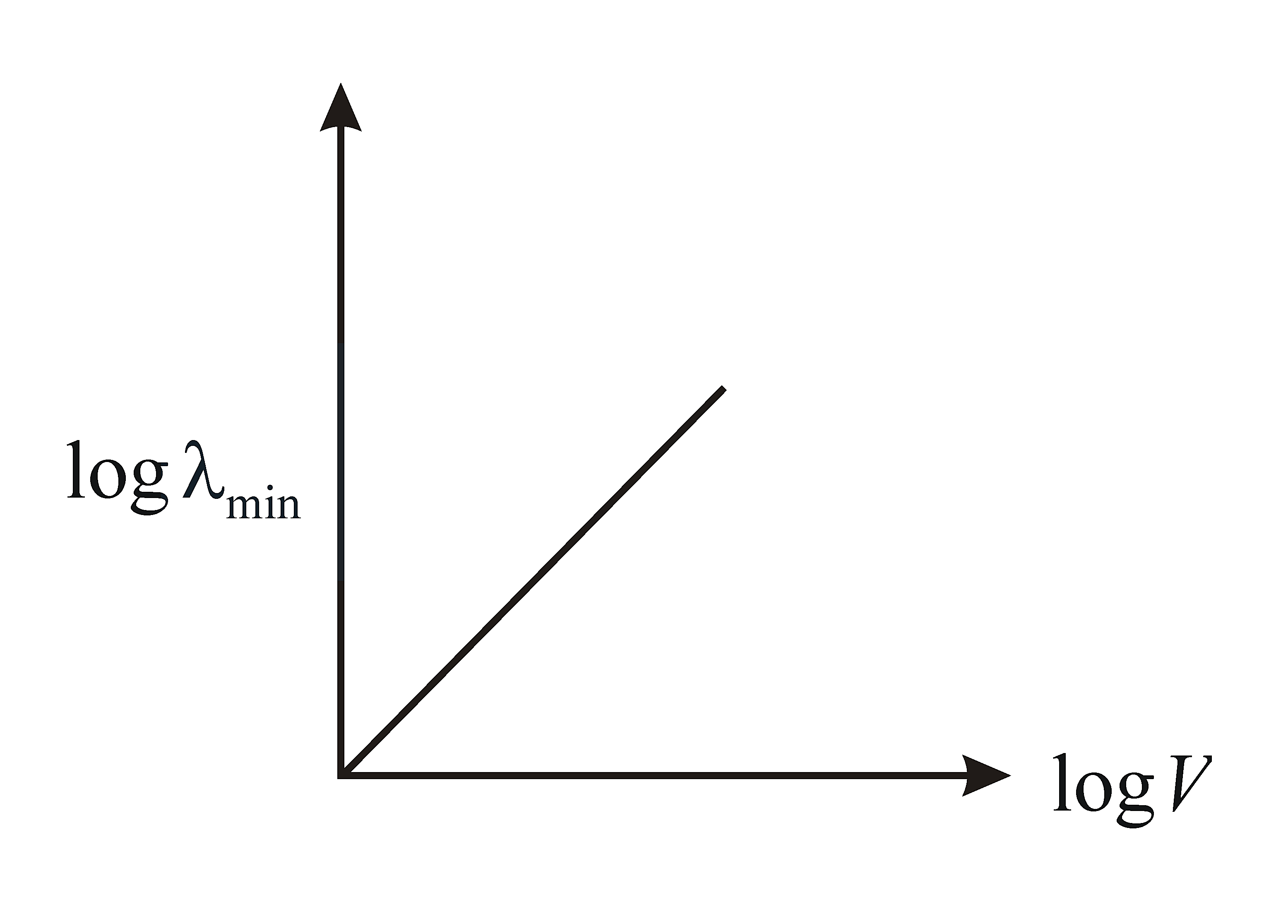

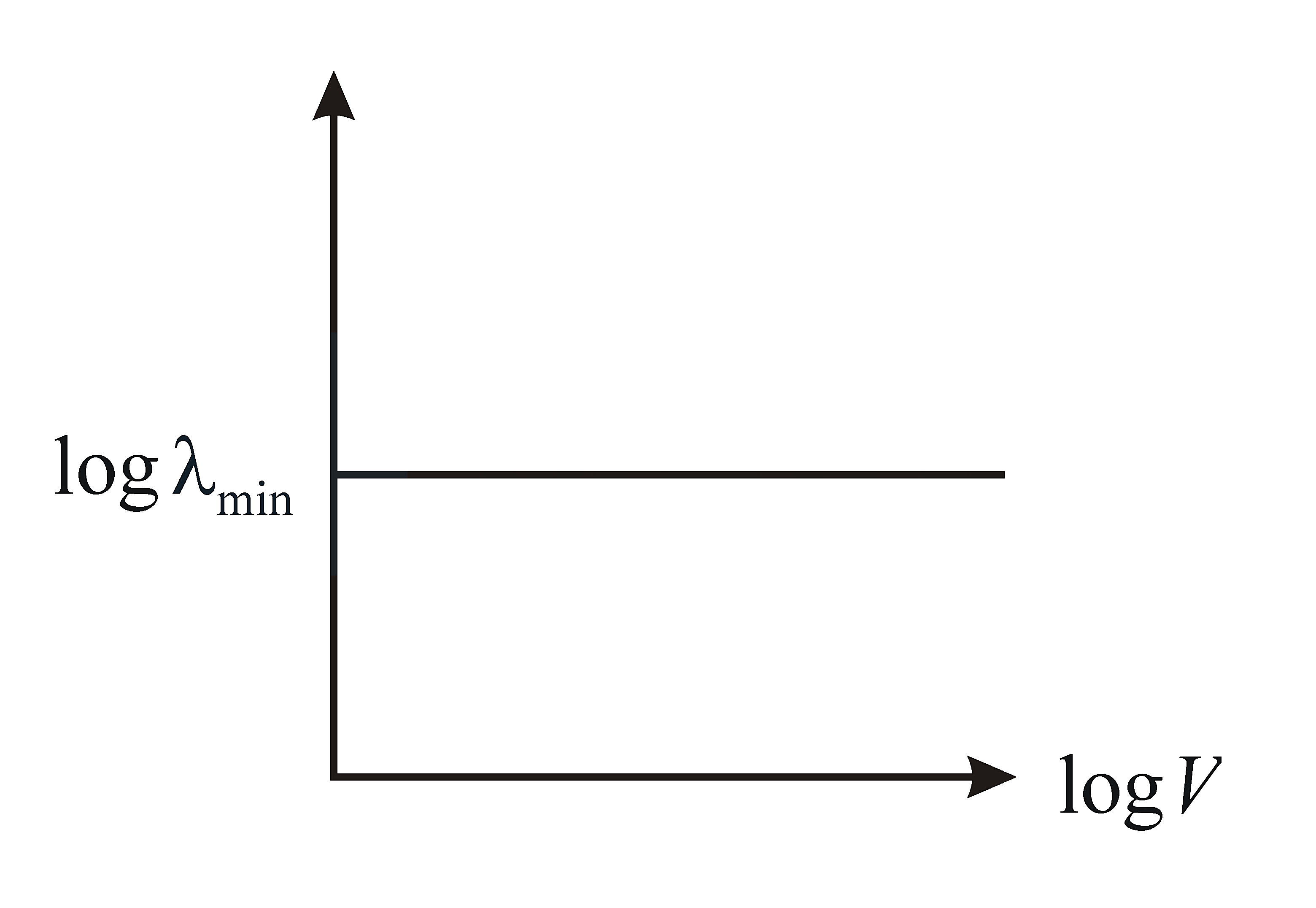

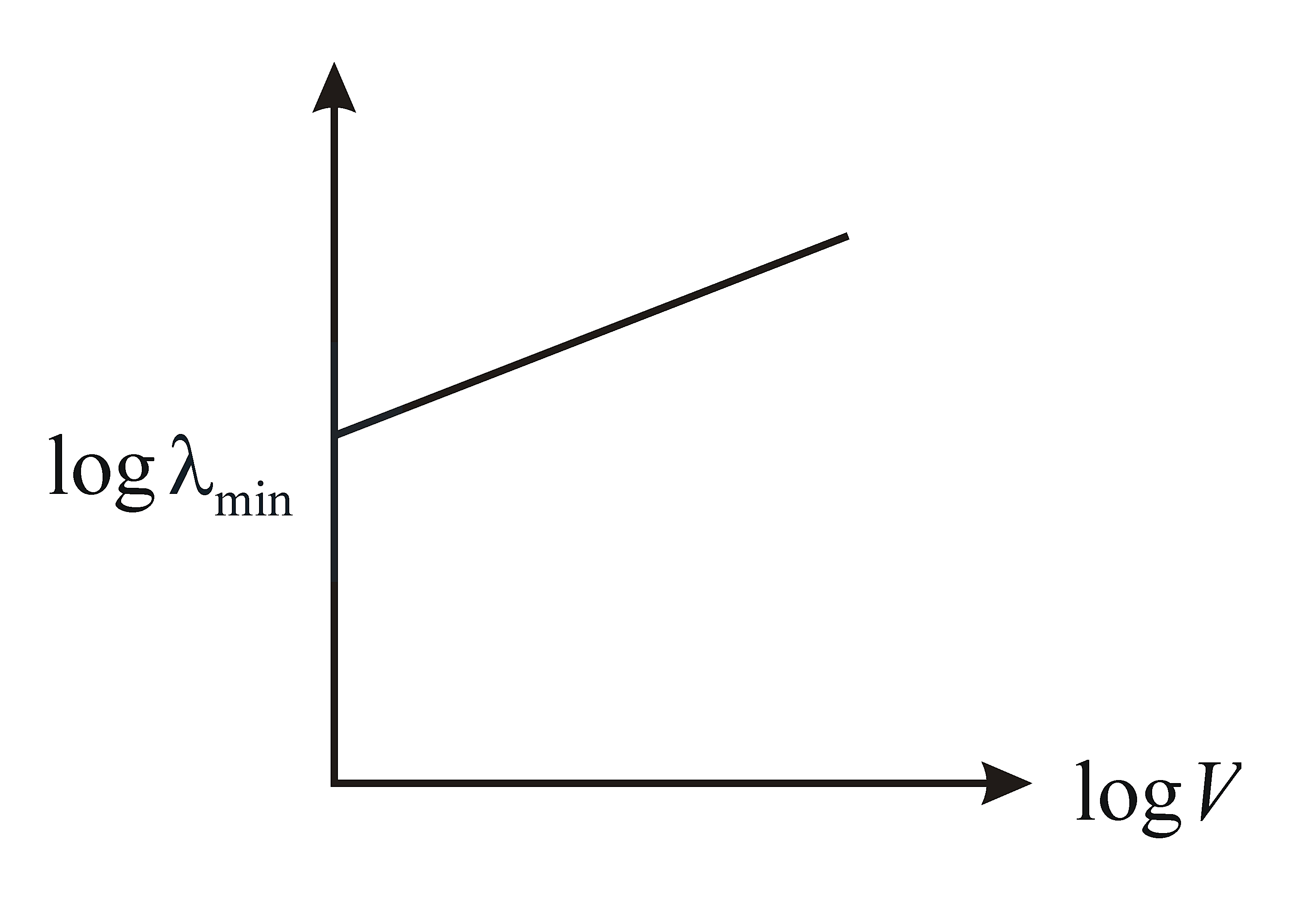

An electron beam is accelerated by a potential difference V to hit a metallic target to produce X-rays. It produces continuous as well as characteristic X-rays. If λmin is the smallest possible wavelength of X-ray in the spectrum, the variation of logλmin with logV is correctly represented in :

Choose an option

Show full solutionCorrect option: B
Correct answer
B

Step-by-step explanation

K.E.=eV,

KE=The kinetic energy of electron

The maximum energy of photon=K.E.

eV=hCλmin

⇒λmin V=hCe=constant

Taken log in both sides

lnλmin+lnV=lnconstant

⇒lnλmin=-lnV+ln(constant)

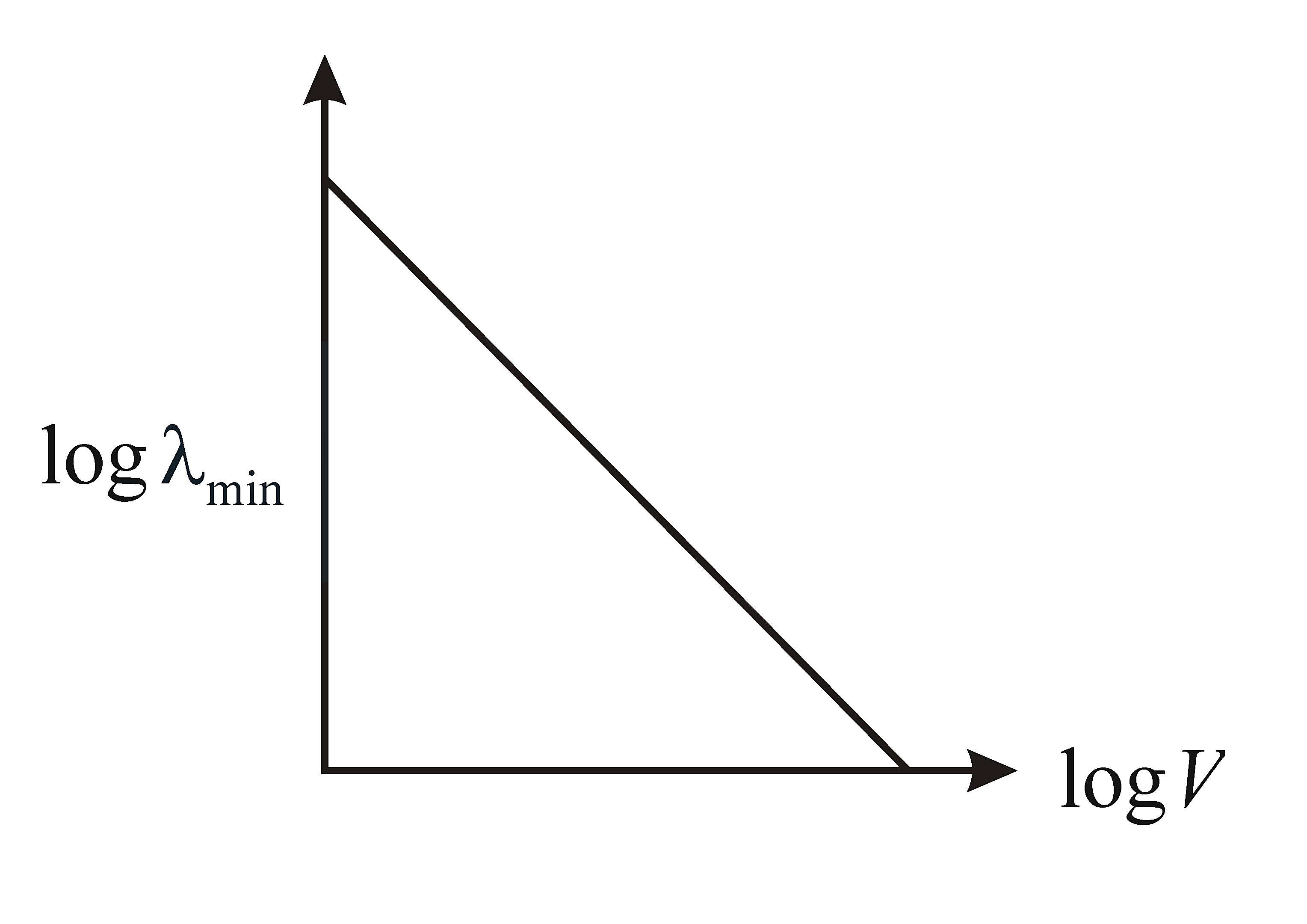

y=-ax+c the straight line of negative slope.
