JEE Main 2022 (24 Jun Shift 1)

Question

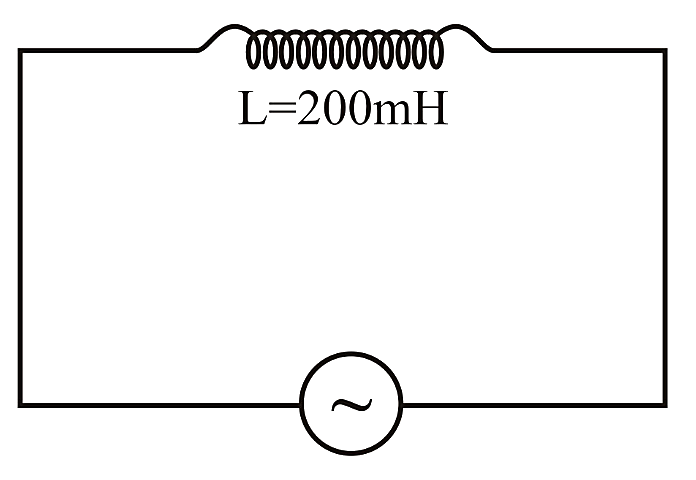

As shown in the figure an inductor of inductance 200 mH is connected to an AC source of emf 220 Vand frequency 50 Hz. The instantaneous voltage of the source is 0 V when the peak value of current is aπ A. The value of a is _____ .

Enter your answer

Show full solutionCorrect answer: 242
Correct answer
242

Step-by-step explanation

The reactance of the given inductor is,

XL=ωL=2πfL=2π×50×0.2=20π Ω.

The maximum current in the given circuit will be,

i0=2VrmsXL=2×22020π=242π A

Therefore, a=242
